SHOWLITE 50

SHOWLITE 50

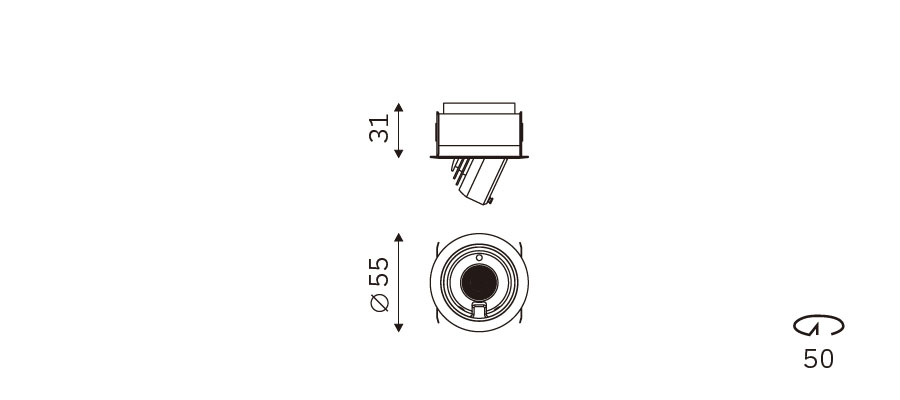

SHOWLITE 50 dimension drawing
Product familySHOWLITE
Model52.05013
DimensionsØ55*31mm
Cut-outØ50mm
Power4W
Luminous flux301lm
Efficacy72.2lm/W
Voltage220-240V
CCT2700K / 3000K / 4000K
CRICRI90
Beam angle28° / 35° / 38° / 53°
IP ratingIP20
FinishWhite / Black
MountingRecessed
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

Downloads

Planning files

DatasheetDownload ↗IES / LDTDownload ↗High-res imageDownload ↗Dimension drawingDownload ↗

Other sizes

More products in SHOWLITE

View family →
SHOWLITE 45

SHOWLITE 45

Wattage: 4W

Size: Ø52*32mm

Lumen Output: 285lm

Beam Angle: 19° / 23° / 28° / 46°
SHOWLITE 45

SHOWLITE 45

Wattage: 4W

Size: Ø52*40mm

Lumen Output: 277lm

Beam Angle: 19° / 23° / 28° / 40°
SHOWLITE 30

SHOWLITE 30

Wattage: 4W

Size: Ø36*35mm

Lumen Output: 150lm

Beam Angle: ww Tilted 10° Beam 45°
