HIGH LUMEN PRO 101

HIGH LUMEN PRO 101

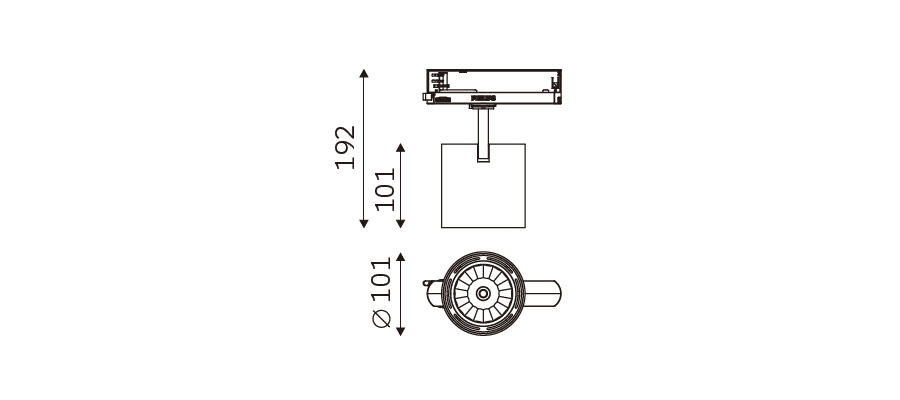

HIGH LUMEN PRO 101 dimension drawing
Product familyHIGH LUMEN PRO
Model32.10111
DimensionsØ101*101mm
Power39W
Luminous flux5274lm
Efficacy135lm/W
Voltage220-240V
CCT2700K/3000K/4000K
CRI90
Beam angle22°/33°/55/68°
IP ratingIP20
FinishWhite/Black
Mounting1 Circuit/ 3 Circuit
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

Downloads

Planning files

DatasheetDownload ↗IES / LDTDownload ↗High-res imageDownload ↗Dimension drawingDownload ↗
