ARMI 45

ARMI 45

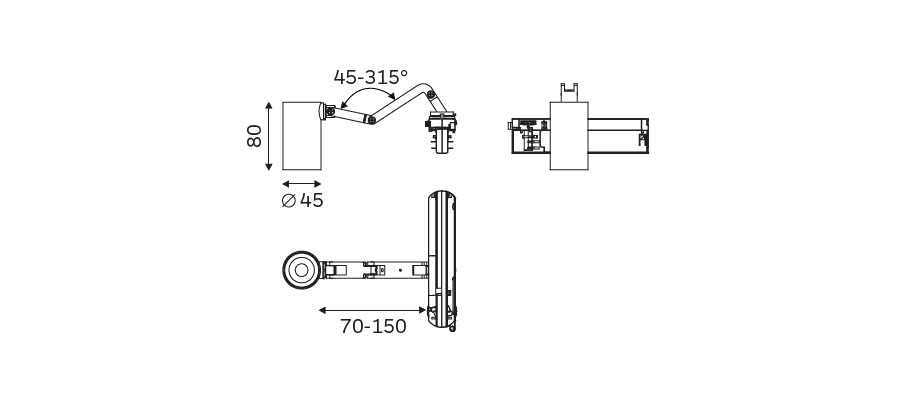

ARMI 45 dimension drawing
Product familyARMI
Model32.04530
DimensionsØ45*80mm
Power11W
Luminous flux935lm
Efficacy85lm/W
Voltage220-240V
CCT2700K/3000K/4000K
CRI90
Beam angle19°/29°/44°/56°
IP ratingIP20
FinishWhite/Black
Mounting1 Circuit/ 3 Circuit
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

Downloads

Planning files

DatasheetDownload ↗IES / LDTDownload ↗High-res imageDownload ↗Dimension drawingDownload ↗

Other sizes

More products in ARMI

View family →
ARMI 65

ARMI 65

Wattage: 14W

Size: Ø65*120mm

Lumen Output: 1627lm

Beam Angle: 18°/27°/38°/54°

Spotlight
ARMI 73

ARMI 73

Wattage: 25W

Size: Ø73*125mm

Lumen Output: 2963lm

Beam Angle: 14°/28°/40°/50°
